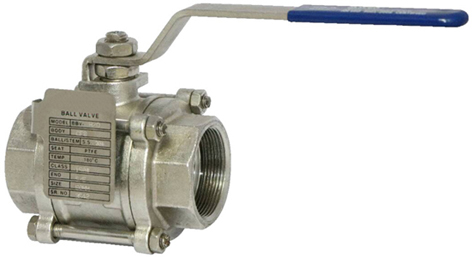

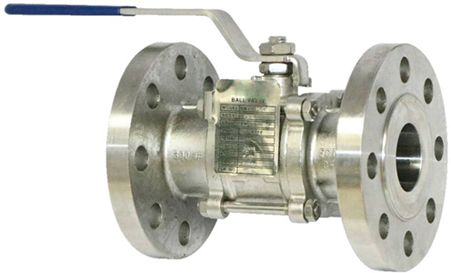

Ball Valves - [STD] Series

"Antiblock sysem that avoids ball blockage."
100% Factory Tested.
Minimal pressure drop.
Low operating torque.
Excellent flow charecteristics.
Threaded seal-carrier for upstream maintenance without emptyinng the system. Handle built-in tool for easy adjustment of the threaded seal carrier(and ball torque).
Sizes from : D16 to D125
Available standards : Metric, ASTM, British standard, JIS.
Threaded versions : BSP & NPT.
O-Rings available in food grade EPDM or viton.
Ball seat in HDPE & PTFE.

U-PVC True Union Ball Valves (For Water)

Dia	Code	PN	Z(mm)	L1(mm)	L(mm)	H(mm)	H1(mm)	Kg/Pie	Pcs / Box
16	202000162	16	55	48	86	47	27	0,195	55
20	202000202	16	60	45	85	47	27	0,142	55
25	202000252	16	58	49	95	51	31	0,198	75
32	202000322	16	68	54	107	63	33	0,254	60
40	202000402	16	82	65	128	67	41	0,412	30
50	202000502	16	94	74	154	86	46	0,672	20
63	202000632	16	98	87	172	101	58	1,168	12
75	202000752	16	119	98	196	110	65	1,468	9
90	202000902	16	156	126	241	137	89	3,544	4
110	202001102	16	185	150	289	150	105	5,296	2
