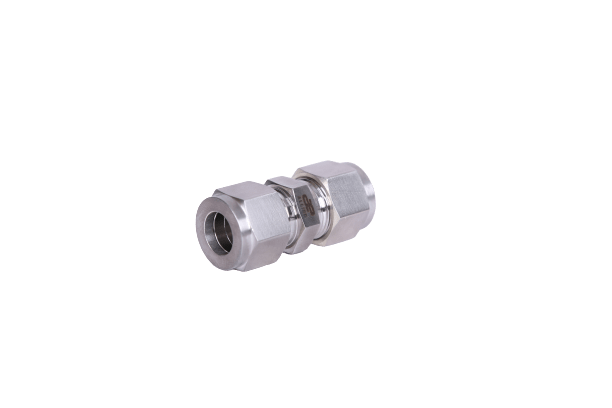

Union
For fractional Tubes connection
| TUBE OD | DIMENSIONS IN INCH | PART NO. | |||
|---|---|---|---|---|---|
| T | E | F | G | L | |
| 1/8 | 0.09 | 7/16 | 7/16 | 0.88 | AU-2 |
| 3/16 | 0.12 | 7/16 | 1/2 | 0.95 | AU-3 |
| 1/4 | 0.19 | 1/2 | 9/16 | 1.03 | AU-4 |
| 5/16 | 0.25 | 9/16 | 5/8 | 1.11 | AU-5 |
| 3/8 | 0.28 | 5/8 | 11/16 | 1.19 | AU-6 |
| 1/2 | 0.41 | 13/16 | 7/8 | 1.22 | AU-8 |
| 5/8 | 0.50 | 15/16 | 1 | 1.25 | AU-10 |
| 3/4 | 0.62 | 1 1/16 | 1 1/8 | 1.31 | AU-12 |
| 7/8 | 0.72 | 1 3/16 | 11/4 | 1.37 | AU-14 |
| 1 | 0.88 | 13/8 | 11/2 | 1.59 | AU-16 |
