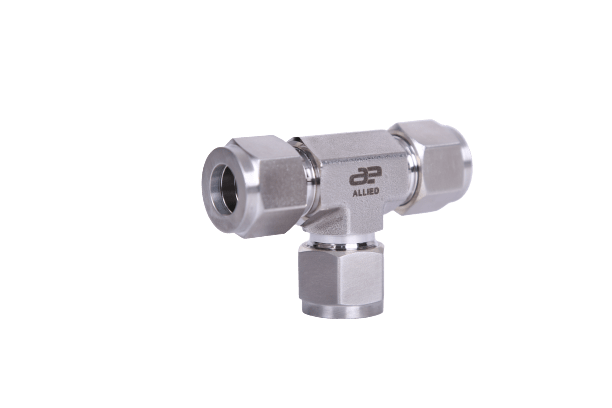

Union Tee
For fractional Tubes connection
| TUBE OD | DIMENSIONS IN INCH | PART NO. | ||||
|---|---|---|---|---|---|---|
| T | E | F | G | L | Lx | |
| 1/8 | 0.09 | 3/8 | 7/16 | 1.24 | 0.62 | AUT-2 |
| 3/16 | 0.12 | 7/16 | 1/2 | 1.40 | 0.70 | AUT-3 |
| 1/4 | 0.19 | 1/2 | 9/16 | 1.54 | 0.77 | AUT-4 |
| 5/16 | 0.25 | 5/8 | 5/8 | 1.76 | 0.88 | AUT-5 |
| 3/8 | 0.28 | 5/8 | 11/16 | 1.82 | 0.91 | AUT-6 |
| 1/2 | 0.41 | 13/16 | 7/8 | 2.04 | 1.02 | AUT-8 |
| 5/8 | 0.50 | 1 | 1 | 2.26 | 1.13 | AUT-10 |
| 3/4 | 0.62 | 1 1/16 | 1 1/8 | 2.34 | 1.17 | AUT-12 |
| 7/8 | 0.72 | 1 3/8 | 1 1/4 | 2.72 | 1.36 | AUT-14 |
| 1 | 0.88 | 1 3/8 | 1 1/2 | 2.90 | 1.45 | AUT-16 |
