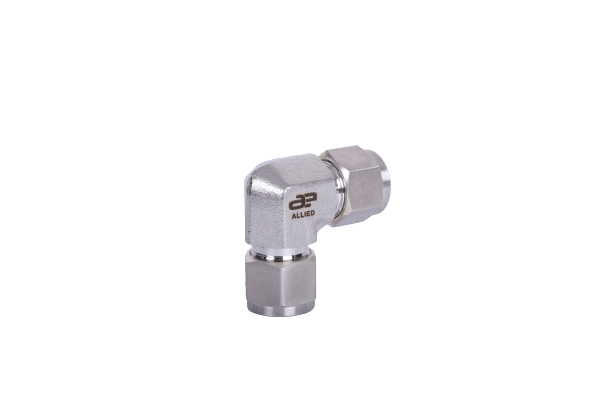

Union Elbow
For fractional Tubes connection
| TUBE OD | DIMENSIONS IN INCH | PART NO. | |||
|---|---|---|---|---|---|
| T | E | F | G | Lx | |
| 1/8 | 0.09 | 7/16 | 7/16 | 0.62 | AUE-2 |
| 3/16 | 0.12 | 7/16 | 1/2 | 0.74 | AUE-3 |
| 1/4 | 0.19 | 1/2 | 9/16 | 0.77 | AUE-4 |
| 5/16 | 0.25 | 9/16 | 5/8 | 0.84 | AUE-5 |
| 3/8 | 0.28 | 5/8 | 11/16 | 0.91 | AUE-6 |
| 1/2 | 0.41 | 13/16 | 7/8 | 1.02 | AUE-8 |
| 5/8 | 0.50 | 15/16 | 1 | 1.10 | AUE-10 |
| 3/4 | 0.62 | 1 1/16 | 1 1/8 | 1.17 | AUE-12 |
| 7/8 | 0.72 | 1 3/8 | 1 1/4 | 1.36 | AUE-14 |
| 1 | 0.88 | 1 3/8 | 1 1/2 | 1.45 | AUE-16 |
