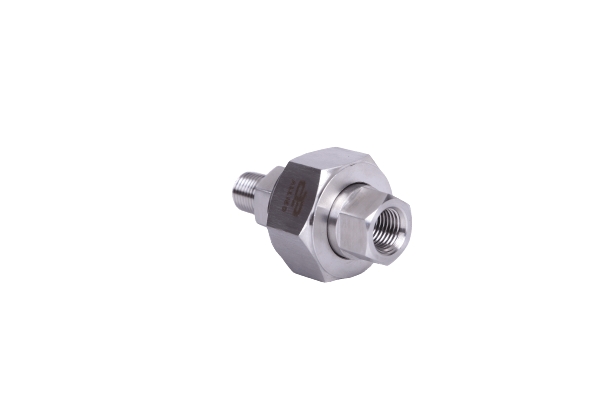

Union Ball Joint – AUBJ
Female NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P-FEMALE NPT | E | L | A/F1 | A/F2 | |||||
| INCH | MM | INCH | MM | INCH | INCH | PSIG | BAR | ||
| 1/8 | 0.27 | 6.8 | 1.81 | 46.0 | 1 1/8 | 1 5/16 | 8400 | 572 | AURJ-2N |
| 1/4 | 0.36 | 9.1 | 2.34 | 59.4 | 1 3/8 | 1 5/16 | 6600 | 450 | AURJ-4N |
| 3/8 | 0.52 | 13.2 | 2.50 | 63.5 | 1 1/2 | 1 5/16 | 5300 | 360 | AURJ-6N |
| 1/2 | 0.62 | 15.7 | 2.69 | 68.3 | 1 3/4 | 1 5/8 | 6000 | 408 | AURJ-8N |
| 3/4 | 0.88 | 22.4 | 3.12 | 79.2 | 2 1/8 | 1 7/8 | 4600 | 313 | AURJ-12N |
| 1 | 1.03 | 26.2 | 3.56 | 90.4 | 2 1/2 | 2 3/8 | 6800 | 462 | AURJ-16N |
