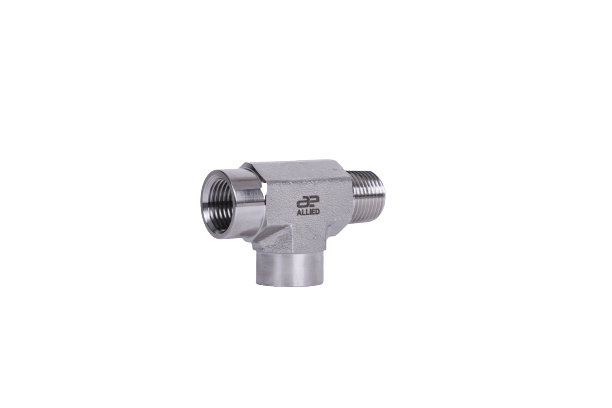

Street Tee – AST

Female to Male NPT Threads

PIPE SIZE		DIMENSIONS									PRESSURE RATINGS		PART NO.
P-MALE NPT	P2-FEMALE NPT	E		L1		L2		L3		A/F
P-MALE NPT	P2-FEMALE NPT	INCH	MM	INCH	MM	INCH	MM	INCH	MM	INCH	PSIG	BAR
1/8	1/8	0.19	4.8	1.91	48.5	1.04	26.4	0.87	22.1	9/16	5500	375	AST-2N
1/4	1/4	0.28	7.1	2.34	59.4	1.17	29.7	1.17	29.7	3/4	5600	380	AST-4N
3/8	3/8	0.38	9.6	2.68	68.1	1.42	36.1	1.26	32.0	7/8	5000	340	AST-6N
1/2	1/2	0.47	11.9	3.12	79.2	1.56	39.6	1.56	39.6	1 1/16	4500	306	AST-8N
