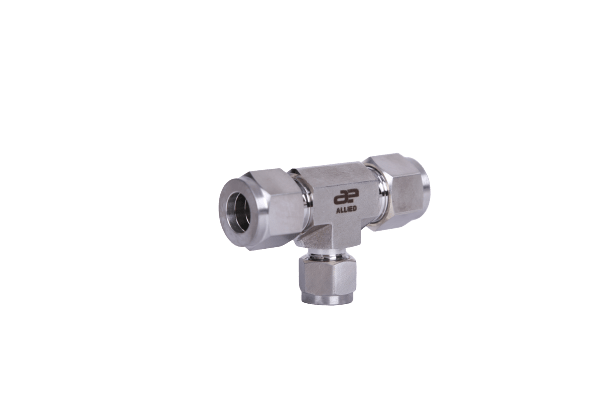

Reducing Union Tee
For fractional Tubes connection
| TUBE OD | TUBE OD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | Tx | E | F | G | Gx | L | Lx | Ly | |
| 3/8 | 1/4 | 0.19 | 5/8 | 11/16 | 9/16 | 1.82 | 0.91 | 0.85 | ARUT-6-4 |
| 1/2 | 1/4 | 0.19 | 13/16 | 7/8 | 9/16 | 2.04 | 1.02 | 0.96 | ARUT-8-4 |
| 1/2 | 3/8 | 0.28 | 13/16 | 7/8 | 11/16 | 2.04 | 1.02 | 1.02 | ARUT-8-6 |
| 5/8 | 3/8 | 0.28 | 1 | 1 | 11/16 | 2.26 | 1.13 | 1.13 | ARUT-10-6 |
| 3/4 | 3/8 | 0.28 | 1 1/16 | 1 1/8 | 11/16 | 2.34 | 1.17 | 1.17 | ARUT-12-6 |
| 3/4 | 1/2 | 0.41 | 1 1/16 | 1 1/8 | 7/8 | 2.34 | 1.17 | 1.17 | ARUT-12-8 |
| 1 | 3/8 | 0.28 | 1 3/8 | 1 1/2 | 1 1/16 | 2.90 | 1.45 | 1.36 | ARUT-16-6 |
| 1 | 1/2 | 0.41 | 1 3/8 | 1 1/2 | 7/8 | 2.90 | 1.45 | 1.36 | ARUT-16-8 |
| 1 | 3/4 | 0.62 | 1 3/8 | 1 1/2 | 1 1/8 | 2.90 | 1.45 | 1.36 | ARUT-16-12 |
