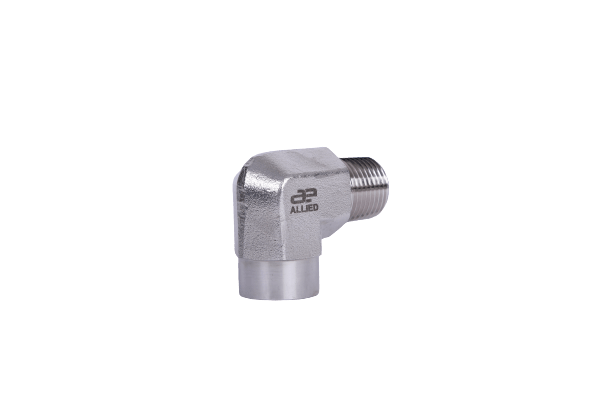

Reducing Street Elbow – ARSE
Female to Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| P1 -FEMALE NPT | P2 -FEMALE NPT | E | L2 | L3 | A/F | ||||||
| INCH | MM | INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/8 | 0.19 | 4.8 | 1.17 | 29.7 | 1.00 | 25.4 | 9/16 | 5500 | 375 | ARSE-4N-2N |
| 3/8 | 1/4 | 0.28 | 7.1 | 1.42 | 36.1 | 1.26 | 32.0 | 7/8 | 5500 | 375 | ARSE-6N-4N |
| 1/2 | 1/4 | 0.38 | 7.1 | 1.56 | 39.6 | 1.38 | 35.1 | 1 1/16 | 4500 | 306 | ARSE-8N-4N |
| 1/2 | 3/8 | 0.38 | 9.6 | 1.56 | 39.6 | 1.38 | 35.1 | 1 1/16 | 4500 | 306 | ARSE-8N-6N |
