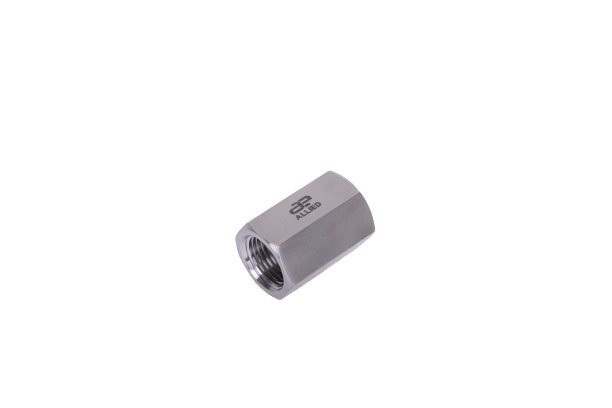

Reducing Hex Coupling – ARHC
Female NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -FEMALE NPT | P2 -FEMALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/8 | 0.34 | 8.6 | 1.22 | 31.0 | 3/4 | 6600 | 450 | ARHC-4N-2N |
| 3/8 | 1/4 | 0.45 | 11.4 | 1.38 | 35.1 | 7/8 | 5300 | 360 | ARHC-6N-4N |
| 1/2 | 1/8 | 0.34 | 8.6 | 1.56 | 39.6 | 1 1/16 | 5200 | 354 | ARHC-8N-2N |
| 1/2 | 1/4 | 0.45 | 11.4 | 1.75 | 44.4 | 1 1/16 | 5200 | 354 | ARHC-8N-4N |
| 1/2 | 3/8 | 0.59 | 15.0 | 1.78 | 45.2 | 1 1/16 | 4300 | 354 | ARHC-8N-6N |
| 3/4 | 1/4 | 0.45 | 11.4 | 1.81 | 46.0 | 1 5/16 | 4300 | 292 | ARHC-12N-4N |
| 3/4 | 3/8 | 0.59 | 15.0 | 1.81 | 46.0 | 1 5/16 | 4300 | 292 | ARHC-12N-6N |
| 3/4 | 1/2 | 0.73 | 18.5 | 2.06 | 52.3 | 1 5/16 | 4300 | 292 | ARHC-12N-8N |
| 1 | 1/2 | 0.73 | 18.5 | 2.19 | 55.6 | 1 5/8 | 4500 | 306 | ARHC-16N-8N |
| 1 | 3/4 | 0.94 | 23.9 | 2.25 | 57.2 | 1 5/8 | 4500 | 306 | ARHC-16N-12N |
