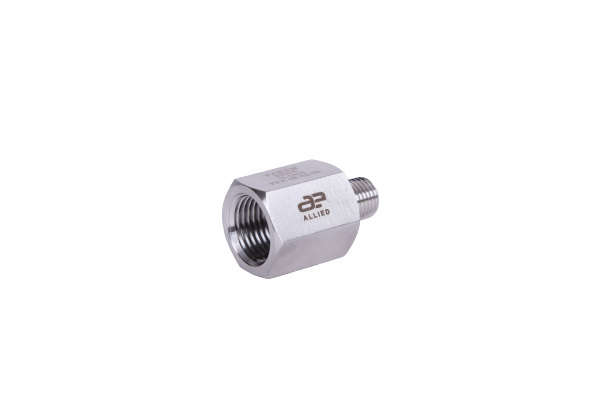

Reducing Adaptor - ARA
Female to Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -FEMALE NPT | P2 -MALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/8 | 0.19 | 4.8 | 1.26 | 32.0 | 3/4 | 6600 | 450 | ARA-4N-2N |
| 3/8 | 1/8 | 0.19 | 4.8 | 1.33 | 33.8 | 7/8 | 5300 | 360 | ARA-6N-2N |
| 3/8 | 1/4 | 0.28 | 7.1 | 1.50 | 38.1 | 7/8 | 5300 | 360 | ARA-6N-4N |
| 1/2 | 1/8 | 0.19 | 4.8 | 1.58 | 40.1 | 1 1/16 | 5200 | 354 | ARA-8N-2N |
| 1/2 | 1/4 | 0.28 | 7.1 | 1.76 | 44.7 | 1 1/16 | 5200 | 354 | ARA-8N-4N |
| 1/2 | 3/8 | 0.38 | 9.6 | 1.75 | 44.4 | 1 1/16 | 5200 | 354 | ARA-8N-6N |
| 3/4 | 1/4 | 0.28 | 7.1 | 1.85 | 47.0 | 1 5/16 | 4300 | 292 | ARA-12N-4N |
| 3/4 | 3/8 | 0.38 | 9.6 | 1.82 | 46.2 | 1 5/16 | 4300 | 292 | ARA-12N-6N |
| 3/4 | 1/2 | 0.47 | 11.9 | 2.02 | 51.3 | 1 5/16 | 4300 | 292 | ARA-12N-8N |
| 1 | 1/4 | 0.28 | 7.1 | 1.96 | 49.8 | 1 5/8 | 4500 | 306 | ARA-16N-4N |
| 1 | 1/2 | 0.47 | 11.9 | 2.16 | 54.9 | 1 5/8 | 4500 | 306 | ARA-16N-8N |
| 1 | 3/4 | 0.62 | 15.7 | 2.17 | 55.1 | 1 5/8 | 4500 | 306 | ARA-16N-12N |
