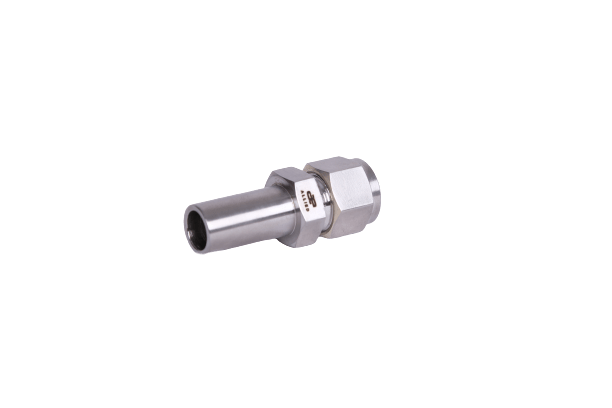

Reducer
For fractional Tube to fractional ports connection
| TUBE OD | TUBE OD | DIMENSIONS IN INCH | PART NO. | |||
|---|---|---|---|---|---|---|
| T | Tx | E | F | G | L | |
| 1/8 | 1/8 | 0.08 | 7/16 | 7/16 | 1.06 | AR-2-2 |
| 1/8 | 3/16 | 0.09 | 7/16 | 7/16 | 1.09 | AR-2-3 |
| 1/8 | 1/4 | 0.09 | 7/16 | 7/16 | 1.16 | AR-2-4 |
| 1/8 | 3/8 | 0.09 | 7/16 | 7/16 | 1.22 | AR-2-6 |
| 1/8 | 1/2 | 0.09 | 9/16 | 7/16 | 1.48 | AR-2-8 |
| 3/16 | 1/8 | 0.08 | 7/16 | 1/2 | 1.11 | AR-3-2 |
| 3/16 | 1/4 | 0.12 | 7/16 | 1/2 | 1.20 | AR-3-4 |
| 1/4 | 1/8 | 0.08 | 1/2 | 9/16 | 1.16 | AR-4-2 |
| 1/4 | 3/16 | 0.12 | 1/2 | 9/16 | 1.19 | AR-4-3 |
| 1/4 | 1/4 | 0.19 | 1/2 | 9/16 | 1.25 | AR-4-4 |
| 1/4 | 5/16 | 0.19 | 1/2 | 9/16 | 1.28 | AR-4-5 |
| 1/4 | 3/8 | 0.19 | 1/2 | 9/16 | 1.31 | AR-4-6 |
| 1/4 | 1/2 | 0.19 | 9/16 | 9/16 | 1.53 | AR-4-8 |
| 1/4 | 5/8 | 0.19 | 11/16 | 9/16 | 1.60 | AR-4-10 |
| 1/4 | 3/4 | 0.19 | 13/16 | 9/16 | 1.59 | AR-4-12 |
| 5/16 | 3/8 | 0.25 | 9/16 | 5/8 | 1.36 | AR-5-6 |
| 5/16 | 1/2 | 0.25 | 9/16 | 5/8 | 1.58 | AR-5-8 |
| 3/8 | 1/4 | 0.19 | 5/8 | 11/16 | 1.34 | AR-6-4 |
| 3/8 | 3/8 | 0.28 | 5/8 | 11/16 | 1.41 | AR-6-6 |
| 3/8 | 1/2 | 0.28 | 5/8 | 11/16 | 1.62 | AR-6-8 |
| 3/8 | 5/8 | 0.28 | 11/16 | 11/16 | 1.69 | AR-6-10 |
| 3/8 | 3/4 | 0.28 | 13/16 | 11/16 | 1.69 | AR-6-12 |
| 1/2 | 1/4 | 0.19 | 13/16 | 7/8 | 1.37 | AR-8-4 |
| 1/2 | 3/8 | 0.28 | 13/16 | 7/8 | 1.44 | AR-8-6 |
| 1/2 | 1/2 | 0.39 | 13/16 | 7/8 | 1.66 | AR-8-8 |
| 1/2 | 5/8 | 0.41 | 13/16 | 7/8 | 1.72 | AR-8-10 |
| 1/2 | 3/4 | 0.41 | 13/16 | 7/8 | 1.72 | AR-8-12 |
| 1/2 | 1 | 0.41 | 1 1/16 | 7/8 | 1.97 | AR-8-16 |
| 5/8 | 3/4 | 0.50 | 15/16 | 1 | 1.75 | AR-10-12 |
| 5/8 | 7/8 | 0.50 | 15/16 | 1 | 1.81 | AR-10-14 |
| 5/8 | 1 | 0.50 | 1 1/16 | 1 | 2.00 | AR-10-16 |
| 3/4 | 1/2 | 0.39 | 1 1/16 | 1 1/8 | 1.75 | AR-12-8 |
| 3/4 | 1 | 0.39 | 1 1/16 | 1 1/8 | 2.06 | AR-12-16 |
