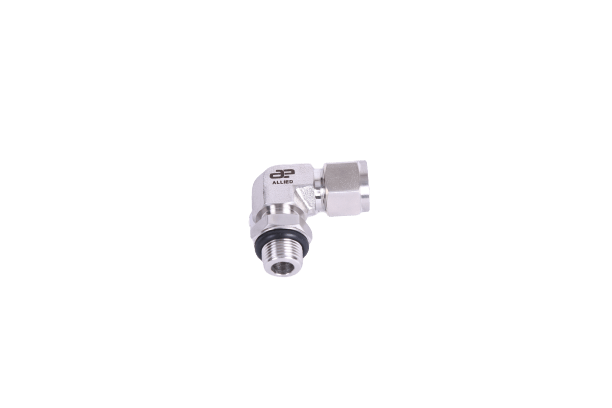

Positionable Male Elbow (SAE/MS straight thread)
For fractional tube to SAE/MS straight thread boss connection
| TUBE OD | SAE/MS STRAIGHT THREAD | DIMENSIONS IN INCH | UNIFORM SIZE NUMBER | PART NO. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | Fx | G | Lx | Ly | M | O-Ring | |
| 1/4 | 7/16x20 | 0.39 | 0.19 | 1/2 | 9/16 | 9/16 | 0.83 | 1.12 | 0.65 | -904 | AMEP-4-7SE |
| 1/4 | 9/16x18 | 0.44 | 0.19 | 5/8 | 11/16 | 9/16 | 0.91 | 1.27 | 0.79 | -906 | AMEP-4-9SE |
| 5/16 | 1/2x20 | 0.39 | 0.23 | 9/16 | 5/8 | 5/8 | 0.90 | 1.16 | 0.72 | -905 | AMEP-5-8SE |
| 3/8 | 9/16x18 | 0.44 | 0.28 | 5/8 | 11/16 | 11/16 | 0.97 | 1.27 | 0.79 | -906 | AMEP-6-9SE |
| 3/8 | 3/4x16 | 0.50 | 0.28 | 13/16 | 7/8 | 11/16 | 1.08 | 1.49 | 1.01 | -908 | AMEP-6-12SE |
| 1/2 | 3/4x16 | 0.50 | 0.41 | 13/16 | 7/8 | 7/8 | 1.08 | 1.49 | 1.01 | -908 | AMEP-8-12SE |
| 5/8 | 7/8x14 | 0.56 | 0.50 | 15/16 | 1 | 1 | 1.16 | 1.71 | 1.16 | -910 | AMEP-10-14SE |
| 3/4 | 1 1/16x12 | 0.66 | 0.62 | 1 1/16 | 1 1/4 | 1 1/8 | 1.23 | 1.92 | 1.44 | -912 | AMEP-12-17SE |
| 7/8 | 1 3/16x12 | 0.66 | 0.72 | 1 3/16 | 1 3/8 | 1 1/4 | 1.30 | 1.99 | 1.59 | -914 | AMEP-14-19S |
| 1 | 1 5/16x12 | 0.66 | 0.88 | 1 3/8 | 1 1/2 | 1 1/2 | 1.51 | 2.11 | 1.73 | -916 | AMEP-16-21SE |
