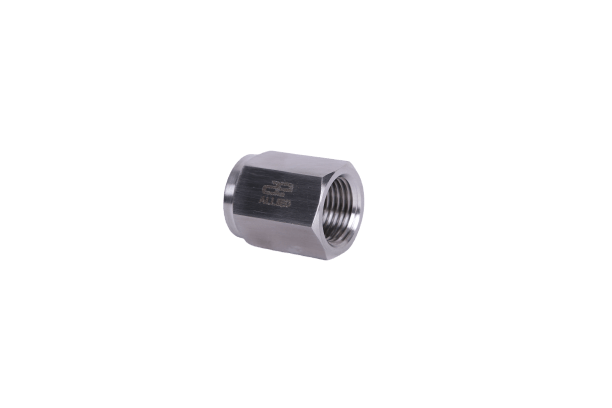

Pipe Cap – APC
Female ISO Tapered (BSPT) pipe Threads
| PIPE SIZE | PRESSURE RATINGS | PART NO. | ||||
|---|---|---|---|---|---|---|
| P-FEMALE NPT | L | A/F | ||||
| INCH | MM | INCH | PSIG | BAR | ||
| 1/8 | 0.75 | 19.1 | 9/16 | 6400 | 435 | APC-2N |
| 1/4 | 0.91 | 23.1 | 3/4 | 6600 | 450 | APC-4N |
| 3/8 | 1.03 | 26.2 | 7/8 | 5300 | 360 | APC-6N |
| 1/2 | 1.34 | 34.0 | 1 1/16 | 5200 | 354 | APC-8N |
| 3/4 | 1.44 | 36.6 | 1 5/16 | 4300 | 292 | APC-12N |
| 1 | 1.62 | 41.1 | 1 5/18 | 4500 | 306 | APC-16N |
