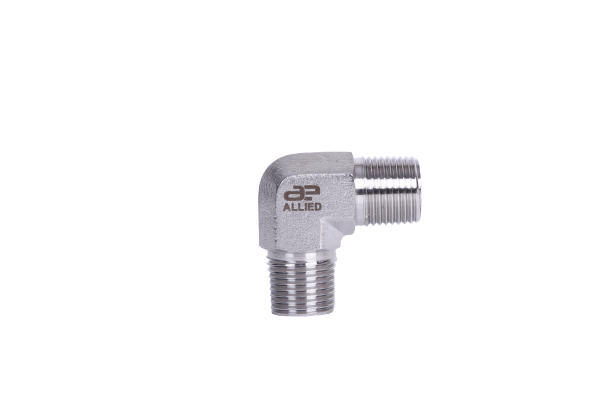

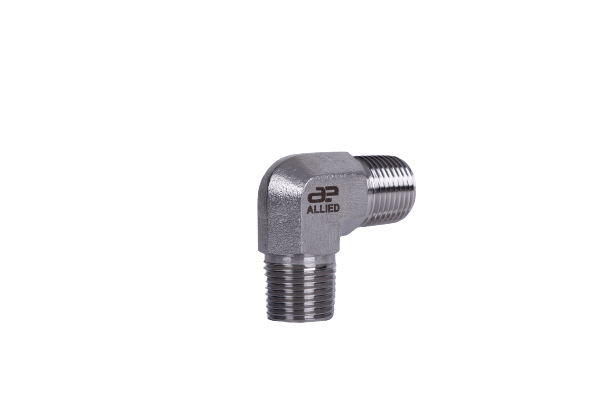

Male Elbow – AME
Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| P1-FEMALE NPT | E | L1 | L2 | A/F | ||||||
| INCH | MM | INCH | MM | INCH | MM | INCH | PSIG | BAR | ||
| 1/8 | 0.34 | 8.6 | 2.08 | 52.8 | 1.04 | 26.4 | 9/16 | 5500 | 375 | AFT-2N |
| 1/4 | 0.45 | 11.4 | 2.34 | 59.4 | 1.17 | 29.7 | 3/4 | 5600 | 380 | AFT-4N |
| 3/8 | 0.59 | 15.0 | 2.84 | 72.1 | 1.42 | 36.1 | 7/8 | 5000 | 340 | AFT-6N |
| 1/2 | 0.73 | 18.5 | 3.12 | 79.2 | 1.56 | 39.6 | 1 1/16 | 4500 | 306 | AFT-8N |
| 3/4 | 0.94 | 23.9 | 3.84 | 97.5 | 1.92 | 48.8 | 1 5/16 | 3500 | 238 | AFT-12N |
| 1 | 1.17 | 29.7 | 3.82 | 97.0 | 1.91 | 48.5 | 1 5/8 | 3900 | 265 | AFT-16N |
