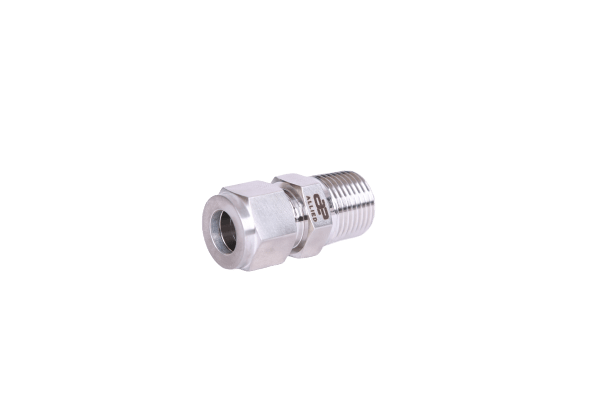

Male Connector (Tapered Thread)
For fractional Tube to Female NPT thread connection
| TUBE OD | NPT MALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||
|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | |
| 1/8 | 1/8 | 0.38 | 0.09 | 7/16 | 7/16 | 0.94 | AMC-2-2N |
| 1/8 | 1/4 | 0.56 | 0.09 | 9/16 | 7/16 | 1.14 | AMC-2-4N |
| 1/8 | 3/8 | 0.56 | 0.09 | 11/16 | 7/16 | 1.15 | AMC-2-6N |
| 1/8 | 1/2 | 0.75 | 0.09 | 7/8 | 7/16 | 1.40 | AMC-2-8N |
| 3/16 | 1/8 | 0.38 | 0.12 | 7/16 | 1/2 | 0.97 | AMC-3-2N |
| 3/16 | 1/4 | 0.56 | 0.12 | 9/16 | 1/2 | 1.17 | AMC-3-4N |
| 1/4 | 1/8 | 0.38 | 0.19 | 1/2 | 9/16 | 1.00 | AMC-4-2N |
| 1/4 | 1/4 | 0.56 | 0.19 | 9/16 | 9/16 | 1.20 | AMC-4-4N |
| 1/4 | 3/8 | 0.56 | 0.19 | 11/16 | 9/16 | 1.22 | AMC-4-6N |
| 1/4 | 1/2 | 0.75 | 0.19 | 7/8 | 9/16 | 1.47 | AMC-4-8N |
| 1/4 | 3/4 | 0.75 | 0.19 | 11/8 | 9/16 | 1.53 | AMC-4-12N |
| 5/16 | 1/8 | 0.38 | 0.19 | 9/16 | 5/8 | 1.05 | AMC-5-2N |
| 5/16 | 1/4 | 0.56 | 0.25 | 9/16 | 5/8 | 1.23 | AMC-5-4N |
| 5/16 | 3/8 | 0.56 | 0.25 | 11/16 | 5/8 | 1.25 | AMC-5-6N |
| 5/16 | 1/2 | 0.75 | 0.25 | 7/8 | 5/8 | 1.50 | AMC-5-8N |
| 3/8 | 1/8 | 0.38 | 0.19 | 5/8 | 11/16 | 1.10 | AMC-6-2N |
| 3/8 | 1/4 | 0.56 | 0.28 | 5/8 | 11/16 | 1.28 | AMC-6-4N |
| 3/8 | 3/8 | 0.56 | 0.28 | 11/16 | 11/16 | 1.28 | AMC-6-6N |
| 3/8 | 1/2 | 0.75 | 0.28 | 7/8 | 11/16 | 1.53 | AMC-6-8N |
| 3/8 | 3/4 | 0.75 | 0.28 | 11/8 | 11/16 | 1.59 | AMC-6-12N |
| 1/2 | 1/8 | 0.38 | 0.19 | 13/16 | 7/8 | 1.13 | AMC-8-2N |
| 1/2 | 1/4 | 0.56 | 0.28 | 13/16 | 7/8 | 1.31 | AMC-8-4N |
| 1/2 | 3/8 | 0.56 | 0.38 | 13/16 | 7/8 | 1.31 | AMC-8-6N |
| 1/2 | 1/2 | 0.75 | 0.41 | 7/8 | 7/8 | 1.53 | AMC-8-8N |
| 1/2 | 3/4 | 0.75 | 0.41 | 11/8 | 7/8 | 1.59 | AMC-8-12N |
| 1/2 | 1 | 0.9 | 0.41 | 13/8 | 7/8 | 1.85 | AMC-8-16N |
| 5/8 | 3/8 | 0.56 | 0.38 | 15/16 | 1 | 1.34 | AMC-10-6N |
| 5/8 | 1/2 | 0.75 | 0.47 | 15/16 | 1 | 1.53 | AMC-10-8N |
| 5/8 | 3/4 | 0.75 | 0.50 | 11/8 | 1 | 1.59 | AMC-10-12N |
| 3/4 | 1/2 | 0.75 | 0.47 | 11/16 | 1 1/8 | 1.59 | AMC-12-8N |
| 3/4 | 3/4 | 0.75 | 0.62 | 11/8 | 1 1/8 | 1.59 | AMC-12-12N |
| 3/4 | 1 | 0.94 | 0.62 | 13/8 | 1 1/8 | 1.85 | AMC-12-16N |
| 7/8 | 3/4 | 0.75 | 0.62 | 13/16 | 1 1/4 | 1.59 | AMC-14-12N |
| 7/8 | 1 | 0.94 | 0.72 | 13/8 | 1 1/4 | 1.85 | AMC-14-16N |
| 1 | 1/2 | 0.75 | 0.47 | 13/8 | 1 1/2 | 1.78 | AMC-16-8N |
| 1 | 3/4 | 0.75 | 0.62 | 13/8 | 1 1/2 | 1.78 | AMC-16-12N |
| 1 | 1 | 0.94 | 0.88 | 13/8 | 1 1/2 | 1.97 | AMC-16-16N |
