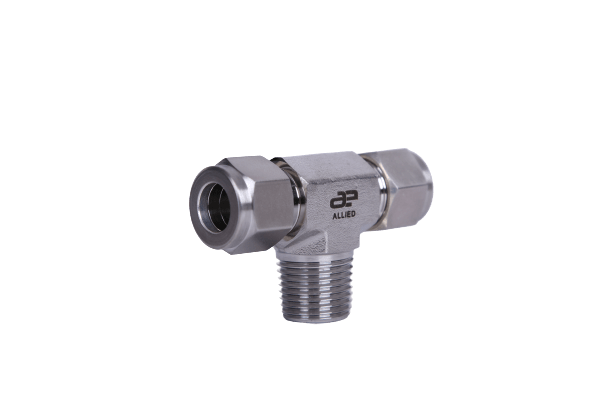

Male Branch Tee (Tapered Thread)
For fractional Tube to female NPT thread connection
| TUBE OD | NPT MALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | Lx | Ly | |
| 1/8 | 1/8 | 0.38 | 0.09 | 7/16 | 7/16 | 1.34 | 0.67 | 0.70 | AMBT-2-2N |
| 1/8 | 1/4 | 0.56 | 0.09 | 9/16 | 7/16 | 1.42 | 0.71 | 0.92 | AMBT-2-4N |
| 3/16 | 1/8 | 0.38 | 0.12 | 7/16 | 1/2 | 1.40 | 0.70 | 0.70 | AMBT-3-2N |
| 1/4 | 1/8 | 0.38 | 0.19 | 1/2 | 9/16 | 1.54 | 0.77 | 0.74 | AMBT-4-2N |
| 1/4 | 1/4 | 0.56 | 0.19 | 9/16 | 9/16 | 1.54 | 0.77 | 0.92 | AMBT-4-4N |
| 5/16 | 1/8 | 0.38 | 0.19 | 9/16 | 5/8 | 1.76 | 0.88 | 0.82 | AMBT-5-2N |
| 3/8 | 1/4 | 0.56 | 0.28 | 5/8 | 11/16 | 1.82 | 0.91 | 1.00 | AMBT-6-4N |
| 3/8 | 3/8 | 0.56 | 0.28 | 13/16 | 11/16 | 2.04 | 1.02 | 1.11 | AMBT-6-6N |
| 1/2 | 3/8 | 0.56 | 0.38 | 13/16 | 7/8 | 2.04 | 1.02 | 1.11 | AMBT-8-6N |
| 1/2 | 1/2 | 0.75 | 0.41 | 7/8 | 7/8 | 2.04 | 1.02 | 1.30 | AMBT-8-6N |
| 5/8 | 1/2 | 0.75 | 0.47 | 1 | 1 | 2.26 | 1.13 | 1.41 | AMBT-10-8N |
| 3/4 | 3/4 | 0.75 | 0.62 | 1 1/8 | 11/8 | 2.34 | 1.17 | 1.45 | AMBT-12-12N |
