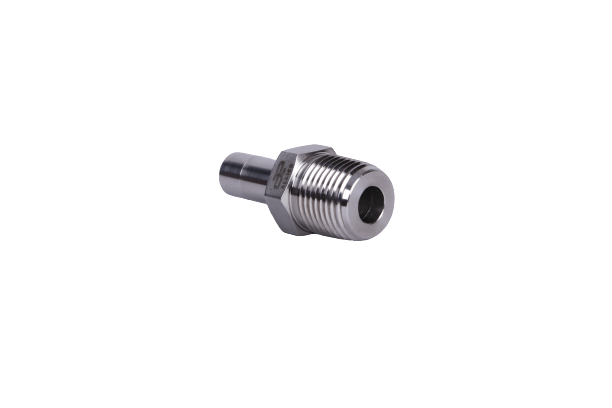

Male Adapter - AMA
Male NPT Threads to Tube Ends
| T TUBE OD | P-ISO MALE PIPE | DIMENSIONS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| E | L | A/F | |||||||
| MM | INCH | SIZE | INCH | MM | INCH | MM | INCH | METRIC | INCH |
| - | 1/8 | 1/8 | 0.08 | 2.0 | 1.16 | 29.5 | 7/16 | - | AMA-2-2N |
| - | 1/8 | 1/4 | 0.08 | 2.0 | 1.37 | 34.8 | 9/16 | - | AMA-2-4N |
| - | 3/16 | 1/8 | 0.12 | 3.0 | 1.19 | 30.2 | 7/16 | - | AMA-3-2N |
| - | 3/16 | 1/4 | 0.12 | 3.0 | 1.40 | 35.5 | 9/16 | - | AMA-3-4N |
| 6 | 1/4 | 1/8 | 0.17 | 4.1 | 1.25 | 32.8 | 7/16 | AMA-6M-2N | AMA-4-2N |
| 6 | 1/4 | 1/4 | 0.17 | 4.1 | 1.46 | 38.1 | 9/16 | AMA-6M-4N | AMA-4-2N |
| - | 1/4 | 3/8 | 0.17 | 4.3 | 1.49 | 37.8 | 11/16 | - | AMA-4-6N |
| - | 1/4 | 1/2 | 0.17 | 4.3 | 1.71 | 43.4 | 7/8 | - | AMA-4-8N |
| - | 5/16 | 1/8 | 0.19 | 4.8 | 1.29 | 32.7 | 7/16 | - | AMA-5-2N |
| 8 | 5/16 | 1/4 | 0.22 | 5.6 | 1.50 | 39.1 | 9/16 | AMA-8M-4N | AMA-5-4N |
| - | 3/8 | 1/8 | 0.19 | 4.8 | 1.32 | 33.5 | 7/17 | - | AMA-6-2N |
| 10 | 3/8 | 1/4 | 0.27 | 6.9 | 1.53 | 39.9 | 9/16 | AMA-10M-4N | AMA-5-4N |
| 10 | 3/8 | 3/8 | 0.27 | 6.9 | 1.56 | 40.6 | 11/16 | AMA-10M-6N | AMA-6-4N |
| 10 | 3/8 | 1/2 | 0.27 | 6.9 | 1.78 | 45.2 | 7/8 | AMA-10M-8N | AMA-6-6N |
| 12 | 1/2 | 1/4 | 0.28 | 7.1 | 1.75 | 46.5 | 9/16 | AMA-12M-4N | AMA-8-4N |
| - | 1/2 | 3/8 | 0.37 | 9.4 | 1.78 | 45.2 | 11/16 | - | AMA-8-6N |
| 12 | 1/2 | 1/2 | 0.37 | 9.4 | 2.00 | 52.1 | 7/8 | AMA-12M-8N | AMA-8-8N |
| - | 5/8 | 1/2 | 0.47 | 11.9 | 2.06 | 52.3 | 7/8 | - | AMA-10-8N |
| - | 3/4 | 1/2 | 0.47 | 11.9 | 2.06 | 52.3 | 7/8 | - | AMA-12-8N |
| - | 3/4 | 3/4 | 0.58 | 14.7 | 2.06 | 52.3 | 1 1/8 | - | AMA-12-12N |
| - | 1 | 3/4 | 0.62 | 15.7 | 2.31 | 58.6 | 1 1/8 | - | AMA-16-12N |
| - | 1 | 1 | 0.80 | 20.3 | 2.60 | 66.0 | 13/8 | - | AMA-16-16N |
