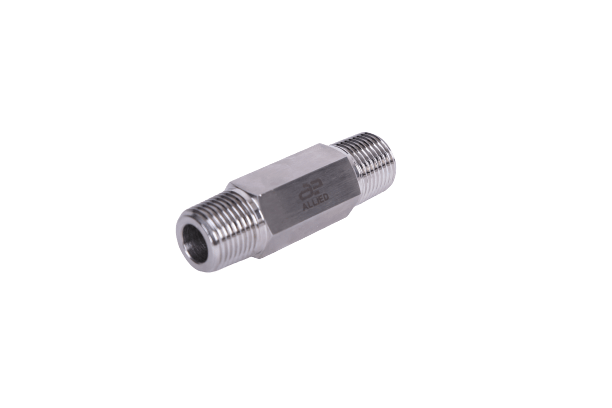

Long Hex Nipple – AHLN
Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | |||||
|---|---|---|---|---|---|---|---|---|
| P-MALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | ||
| 1/8 | 0.19 | 4.8 | 1.50 | 38.1 | 7/16 | 9100 | 620 | AHLN-2N-L1.50 |
| 1/8 | 0.19 | 4.8 | 2.00 | 50.8 | 7/16 | 9100 | 620 | AHLN-2N-L2 |
| 1/8 | 0.19 | 4.8 | 2.50 | 63.5 | 7/16 | 9100 | 620 | AHLN-2N-L2.50 |
| 1/8 | 0.19 | 4.8 | 3.00 | 76.2 | 7/16 | 9100 | 620 | AHLN-2N-L3 |
| 1/4 | 0.28 | 7.1 | 1.50 | 38.1 | 9/16 | 7500 | 510 | AHLN-4N-L1.50 |
| 1/4 | 0.28 | 7.1 | 2.00 | 50.8 | 9/16 | 7500 | 510 | AHLN-4N-L2 |
| 1/4 | 0.28 | 7.1 | 2.50 | 63.5 | 9/16 | 7500 | 510 | AHLN-4N-L2.50 |
| 1/4 | 0.28 | 7.1 | 3.00 | 76.5 | 9/16 | 7500 | 510 | AHLN-4N-L3 |
| 1/4 | 0.28 | 7.1 | 4.00 | 101.6 | 9/16 | 7500 | 510 | AHLN-4N-L4 |
| 3/8 | 0.38 | 9.6 | 1.50 | 38.1 | 11/16 | 7200 | 490 | AHLN-6N-L1.50 |
| 3/8 | 0.38 | 9.6 | 2.00 | 50.8 | 11/16 | 7200 | 490 | AHLN-6N-L2 |
| 3/8 | 0.38 | 9.6 | 2.50 | 63.5 | 11/16 | 7200 | 490 | AHLN-6N-L2.50 |
| 3/8 | 0.38 | 9.6 | 3.00 | 76.2 | 11/16 | 7200 | 490 | AHLN-6N-L3 |
| 3/8 | 0.38 | 9.6 | 4.00 | 101.6 | 11/16 | 7200 | 490 | AHLN-6N-L4 |
| 1/2 | 0.47 | 11.9 | 2.00 | 50.8 | 7.8 | 6600 | 450 | AHLN-8N-L2 |
| 1/2 | 0.47 | 11.9 | 3.00 | 76.2 | 7.8 | 6600 | 450 | AHLN-8N-L3 |
| 1/2 | 0.47 | 11.9 | 4.00 | 101.6 | 7.8 | 6600 | 450 | AHLN-8N-L4 |
| 1/2 | 0.47 | 11.9 | 6.00 | 152.4 | 7.8 | 6600 | 450 | AHLN-8N-L6 |
| 3/4 | 0.62 | 15.7 | 2.00 | 50.8 | 1 1/8 | 6400 | 435 | AHLN-12N-L2 |
| 3/4 | 0.62 | 15.7 | 3.00 | 76.2 | 1 1/8 | 6400 | 435 | AHLN-12N-L3 |
| 3/4 | 0.62 | 15.7 | 4.00 | 101.6 | 1 1/8 | 6400 | 435 | AHLN-12N-L4 |
| 1 | 0.88 | 22.4 | 3.00 | 76.2 | 1 3/8 | 4600 | 315 | AHLN-16N-L3 |
| 1 | 0.88 | 22.4 | 4.00 | 101.6 | 1 3/8 | 4600 | 315 | AHLN-16N-L4 |
