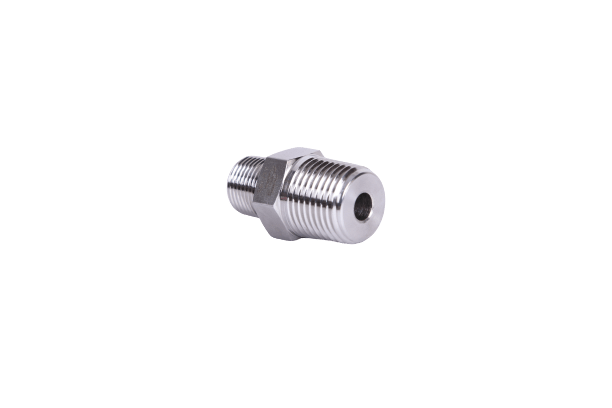

Hex Reducing Nipple – ARHN
Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -MALE NPT | P2 -MALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/8 | 0.19 | 4.8 | 1.22 | 31.0 | 9/16 | 7500 | 510 | ARHN-4N-2N |
| 3/8 | 1/8 | 0.19 | 4.8 | 1.25 | 31.8 | 11/16 | 7200 | 490 | ARHN-6N-2N |
| 3/8 | 1/4 | 0.28 | 7.1 | 1.43 | 36.3 | 11/16 | 7200 | 490 | ARHN-6N-4N |
| 1/2 | 1/8 | 0.19 | 4.8 | 1.47 | 37.3 | 7/8 | 6600 | 450 | ARHN-8N-2N |
| 1/2 | 1/4 | 0.28 | 7.1 | 1.65 | 41.9 | 7/8 | 6600 | 450 | ARHN-8N-4N |
| 1/2 | 3/8 | 0.38 | 9.6 | 1.65 | 41.9 | 7/8 | 6600 | 450 | ARHN-8N-6N |
| 3/4 | 1/4 | 0.28 | 7.1 | 1.65 | 41.9 | 1 1/18 | 6400 | 435 | ARHN-12N-4N |
| 3/4 | 3/8 | 0.38 | 9.6 | 1.65 | 41.9 | 1 1/18 | 6400 | 435 | ARHN-12N-6N |
| 3/4 | 1/2 | 0.47 | 11.9 | 1.84 | 46.7 | 1 1/18 | 6400 | 435 | ARHN-12N-8N |
| 1 | 1/4 | 0.28 | 7.1 | 1.94 | 49.3 | 1 3/8 | 4600 | 315 | ARHN-16N-4N |
| 1 | 1/2 | 0.47 | 11.9 | 2.13 | 54.1 | 1 3/8 | 4600 | 315 | ARHN-16N-8N |
| 1 | 3/4 | 0.62 | 15.7 | 2.13 | 54.1 | 1 3/8 | 4600 | 315 | ARHN-16N-12N |
