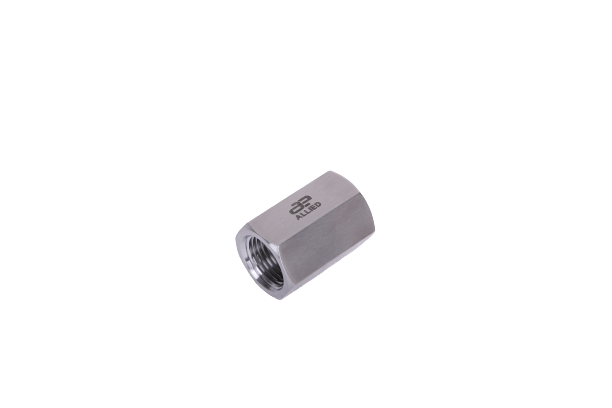

Hex Coupling – AHC
Female NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | |||||
|---|---|---|---|---|---|---|---|---|
| P-FEMALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | ||
| 1/8 | 0.34 | 8.6 | 0.81 | 20.6 | 9/16 | 6400 | 435 | AHC-2N |
| 1/4 | 0.45 | 11.4 | 1.19 | 30.2 | 3/4 | 6600 | 450 | AHC-4N |
| 3/8 | 0.59 | 15.0 | 1.31 | 33.3 | 7/8 | 5300 | 360 | AHC-6N |
| 1/2 | 0.73 | 18.5 | 1.56 | 39.6 | 1 1/16 | 5200 | 354 | AHC-8N |
| 3/4 | 0.94 | 23.9 | 1.62 | 41.1 | 1 5/16 | 4300 | 292 | AHC-12N |
| 1 | 0.88 | 22.4 | 2.32 | 58.9 | 1 3/8 | 4600 | 313 | AHN-16N |
