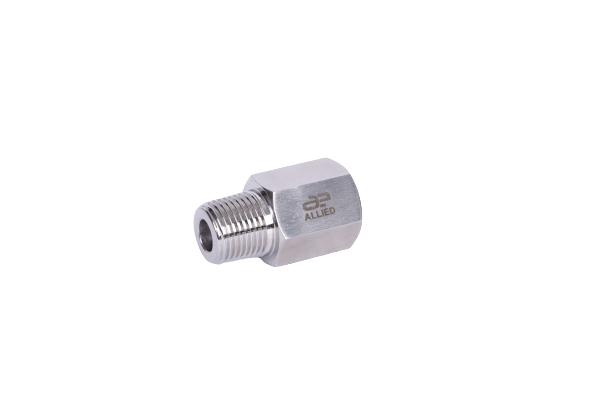

Gauge Adaptor - AGA
Female ISO Parallel (Gauge) to Male NPT Pipe Thread
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -FEMALE NPT | P2 -MALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/4 | 1/4 | 0.22 | 5.6 | 1.19 | 30.2 | 3/4 | 5700 | 388 | AGA-4RG-4N |
| 3/8 | 3/8 | 0.26 | 6.6 | 1.27 | 32.2 | 15/16 | 5700 | 388 | AGA-6RG-6N |
| 1/2 | 1/2 | 0.28 | 7.1 | 1.68 | 42.7 | 1 1/16 | 5700 | 265 | AGA-8RG-8N |
