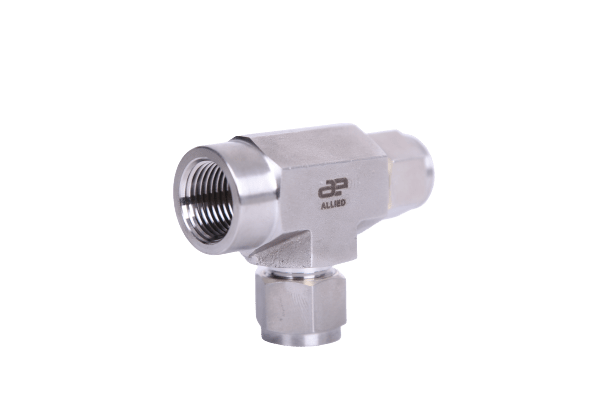

Female Run Tee (Tapered Thread)
For fractional Tube to male NPT thread connection
| TUBE OD | NPT FEMALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | Lx | Ly | |
| 1/8 | 1/8 | 0.41 | 0.09 | 9/16 | 7/16 | 1.46 | 0.71 | 0.75 | AFRT-2-2N |
| 1/4 | 1/8 | 0.41 | 0.19 | 9/16 | 9/16 | 1.52 | 0.77 | 0.75 | AFRT-4-2N |
| 1/4 | 1/4 | 0.59 | 0.19 | 3/4 | 9/16 | 1.76 | 0.88 | 0.88 | AFRT-4-4N |
| 3/8 | 1/4 | 0.59 | 0.28 | 3/4 | 11/16 | 1.82 | 0.94 | 0.88 | AFRT-6-4N |
| 1/2 | 3/8 | 0.59 | 0.41 | 7/8 | 7/8 | 1.90 | 1.02 | 0.88 | AFRT-8-6N |
| 1/2 | 1/2 | 0.78 | 0.41 | 1 1/16 | 7/8 | 2.29 | 1.17 | 1.12 | AFRT-8-8N |
| 3/4 | 3/4 | 0.81 | 0.62 | 1 3/8 | 1 1/8 | 2.61 | 1.36 | 1.25 | AFRT-12-12N |
| 1 | 3/4 | 0.81 | 0.88 | 1 3/8 | 1 1/2 | 2.70 | 1.45 | 1.25 | AFRT-16-12N |
| 1 | 1 | 1.00 | 0.88 | 1 5/8 | 1 1/2 | 3.13 | 1.63 | 1.50 | AFRT-16-16N |
