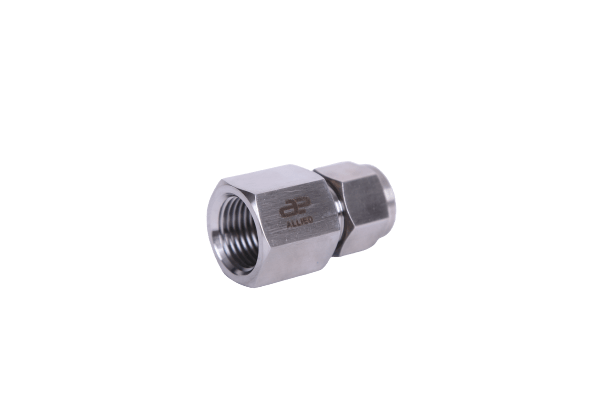

Female Connector (Tapered Thread)
For fractional Tube to male NPT thread connection
| TUBE OD | NPT FEMALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||
|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | |
| 1/8 | 1/8 | 0.41 | 0.09 | 9/16 | 7/16 | 0.87 | AFC-2-2N |
| 1/8 | 1/4 | 0.59 | 0.09 | 3/4 | 7/16 | 1.06 | AFC-2-4N |
| 3/16 | 1/8 | 0.39 | 0.12 | 9/16 | 1/2 | 0.91 | AFC-3-2N |
| 1/4 | 1/8 | 0.39 | 0.19 | 9/16 | 9/16 | 0.94 | AFC-4-2N |
| 1/4 | 1/4 | 0.59 | 0.19 | 3/4 | 9/16 | 1.12 | AFC-4-2N |
| 1/4 | 3/8 | 0.59 | 0.19 | 7/8 | 9/16 | 1.19 | AFC-4-6N |
| 1/4 | 1/2 | 0.78 | 0.19 | 1 1/16 | 9/16 | 1.38 | AFC-4-8N |
| 5/16 | 1/8 | 0.41 | 0.25 | 9/16 | 5/8 | 0.97 | AFC-5-2N |
| 5/16 | 1/4 | 0.59 | 0.25 | 3/4 | 5/8 | 1.16 | AFC-5-4N |
| 5/16 | 3/8 | 0.59 | 0.25 | 7/8 | 5/8 | 1.22 | AFC-5-6N |
| 3/8 | 1/8 | 0.41 | 0.28 | 5/8 | 11/16 | 1.00 | AFC-6-2N |
| 3/8 | 1/4 | 0.59 | 0.28 | 3/4 | 11/16 | 1.19 | AFC-6-4N |
| 3/8 | 3/8 | 0.59 | 0.28 | 7/8 | 11/16 | 1.25 | AFC-6-6N |
| 3/8 | 1/2 | 0.78 | 0.28 | 1 1/16 | 11/16 | 1.44 | AFC-6-8N |
| 3/8 | 3/4 | 0.81 | 0.28 | 1 5/16 | 11/16 | 1.59 | AFC-6-12N |
| 1/2 | 1/4 | 0.59 | 0.41 | 13/16 | 7/8 | 1.19 | AFC-8-2N |
| 1/2 | 3/8 | 0.59 | 0.41 | 7/8 | 7/8 | 1.25 | AFC-8-6N |
| 1/2 | 1/2 | 0.78 | 0.41 | 1 1/16 | 7/8 | 1.44 | AFC-8-8N |
| 1/2 | 3/4 | 0.81 | 0.41 | 1 5/16 | 7/8 | 1.50 | AFC-8-12N |
| 5/8 | 3/8 | 0.59 | 0.50 | 1 5/16 | 1 | 1.25 | AFC-10-6N |
| 5/8 | 1/2 | 0.78 | 0.50 | 1 1/16 | 1 | 1.44 | AFC-10-8N |
| 5/8 | 3/4 | 0.81 | 0.50 | 1 5/16 | 1 | 1.50 | AFC-10-12N |
| 3/4 | 1/2 | 0.78 | 0.62 | 1 1/16 | 1 1/8 | 1.44 | AFC-12-8N |
| 3/4 | 3/4 | 0.81 | 0.62 | 1 5/16 | 1 1/8 | 1.50 | AFC-12-12N |
| 7/8 | 3/4 | 0.81 | 0.72 | 1 5/16 | 1 1/4 | 1.56 | AFC-14-12N |
| 1 | 3/4 | 0.81 | 0.88 | 1 3/8 | 1 1/2 | 1.62 | AFC-16-12N |
| 1 | 1 | 1.00 | 0.88 | 15/8 | 1 1/2 | 1.97 | AFC-16-16N |
