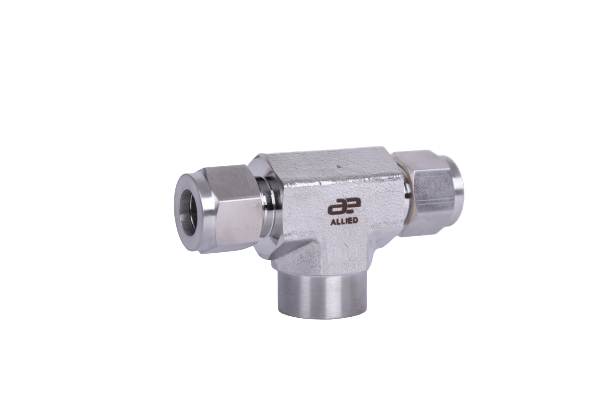

Female Branch Tee (Tapered Thread)
For fractional Tube to male NPT thread connection
| TUBE OD | NPT FEMALE THREAD | DIMENSIONS IN INCH | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | G | L | Lx | Ly | |
| 1/8 | 1/8 | 0.41 | 0.09 | 9/16 | 7/16 | 1.42 | 0.71 | 0.75 | AFBT-2-2N |
| 1/4 | 1/8 | 0.41 | 0.19 | 9/16 | 9/16 | 1.54 | 0.77 | 0.75 | AFBT-4-2N |
| 1/4 | 1/4 | 0.59 | 0.19 | 3/4 | 9/16 | 1.76 | 0.88 | 0.88 | AFBT-4-4N |
| 3/8 | 1/4 | 0.59 | 0.28 | 3/4 | 11/16 | 1.88 | 0.94 | 0.88 | AFBT-6-4N |
| 3/8 | 3/8 | 0.59 | 0.28 | 7/8 | 11/16 | 2.04 | 1.02 | 0.88 | AFBT-6-6N |
| 3/8 | 1/2 | 0.78 | 0.28 | 1 1/16 | 11/16 | 2.26 | 1.13 | 1.12 | AFBT-6-8N |
| 1/2 | 1/4 | 0.59 | 0.41 | 13/16 | 7/8 | 2.04 | 1.02 | 0.88 | AFBT-8-4N |
| 1/2 | 3/8 | 0.59 | 0.41 | 7/8 | 7/8 | 2.04 | 1.02 | 0.88 | AFBT-8-6N |
| 1/2 | 1/2 | 0.78 | 0.41 | 1 1/16 | 7/8 | 2.26 | 1.13 | 1.12 | AFBT-8-8N |
| 5/8 | 1/2 | 0.78 | 0.50 | 1 1/16 | 1 | 2.26 | 1.13 | 1.12 | AFBT-10-8N |
| 3/4 | 3/4 | 0.81 | 0.62 | 1 3/8 | 11/8 | 2.72 | 1.36 | 1.25 | AFBT-12-12N |
| 1 | 3/4 | 0.81 | 0.88 | 1 3/8 | 11/2 | 2.90 | 1.45 | 1.25 | AFBT-16-12N |
| 1 | 1 | 1.00 | 0.88 | 1 5/8 | 11/2 | 3.26 | 1.63 | 1.50 | AFBT-16-16N |
