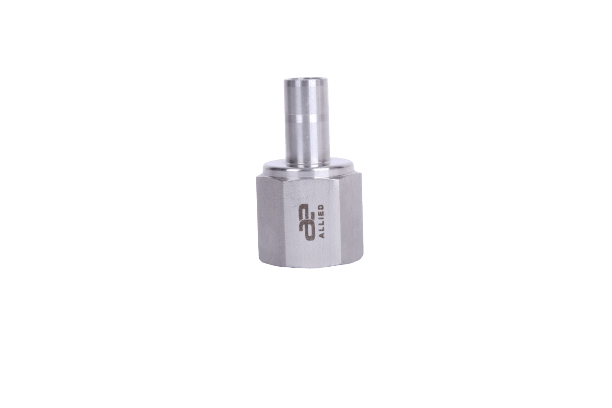

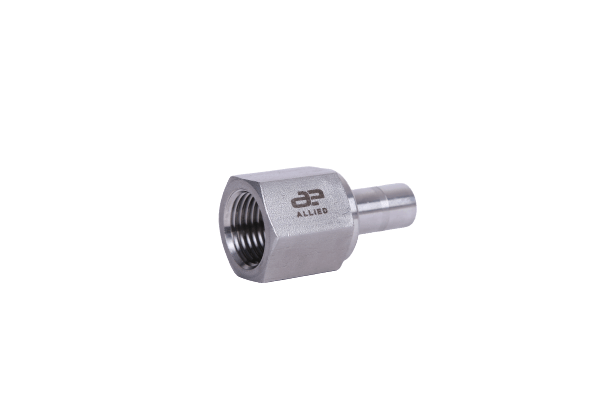

Female Adapter - AFA
Female ISO Parallel (BSP) pipe threads to Tube End
| T TUBE OD | P-ISO FEMALE PIPE | DIMENSIONS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| E | L | A/F | |||||||
| MM | INCH | SIZE | INCH | MM | INCH | MM | INCH | METRIC | INCH |
| 6 | 1/4 | 1/4 | 0.17 | 4.1 | 1.39 | 35.3 | 3/4 | AFA-6M-4RG | AFA-4-4RG |
| 6 | - | 3/8 | 0.16 | 4.1 | 1.51 | 38.4 | 15/16 | AFA-6M-6RG | - |
| 6 | - | 1/2 | 0.16 | 4.1 | 1.68 | 42.9 | 1 1/16 | AFA-6M-8RG | - |
| 8 | - | 1/4 | 0.21 | 5.5 | 1.30 | 33.0 | 3/4 | AFA-8M-4RG | - |
| 8 | - | 1/2 | 0.22 | 5.6 | 1.72 | 43.7 | 1 1/16 | AFA-8M-8RG | - |
| 10 | - | 1/4 | 0.21 | 5.5 | 1.36 | 34.5 | 3/4 | AFA-10M-4RG | - |
| - | 3/8 | 3/8 | 0.26 | 6.6 | 1.55 | 39.4 | 15/16 | - | AFA-6-6RG |
| 10 | - | 1/2 | 0.27 | 7.1 | 1.62 | 41.1 | 1 1/16 | AFA-10M-8RG | - |
| 12 | - | 1/4 | 0.21 | 5.5 | 1.58 | 40.1 | 3/4 | AFA-12M-4RG | - |
| 12 | 1/2 | 1/2 | 0.27 | 1.92 | 1.50 | 48.8 | 1 1/16 | AFA-12M-8RG | AFA-8-8RG |
| 16 | - | 1/2 | 0.27 | 1.93 | 1.32 | 49.0 | 1 1/16 | AFA-16M-8RG | - |
| 18 | - | 1/2 | 0.27 | 1.94 | 1.53 | 49.3 | 1 1/16 | AFA-18M-8RG | - |
