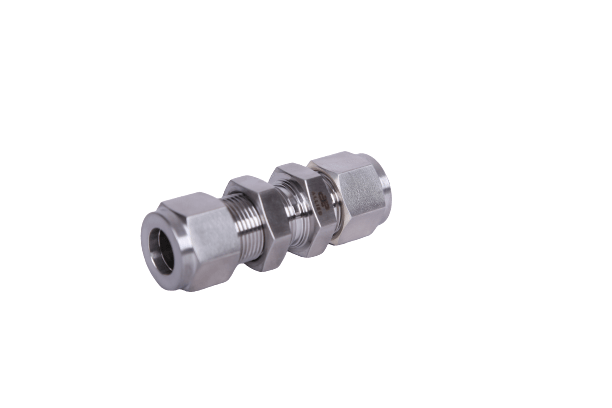

Bulkhead Union
For fractional Tubes connection
| TUBE OD | DIMENSIONS IN INCH | Panel Hole | Panel Thickness | PART NO. | ||||
|---|---|---|---|---|---|---|---|---|
| T | E | F | G | L | Lx | Size | Max. | |
| 1/8 | 0.09 | 1/2 | 7/16 | 1.50 | 0.97 | 21/64 | 0.50 | ABU-2 |
| 3/16 | 0.12 | 9/16 | 1/2 | 1.59 | 1.00 | 25/64 | 0.50 | ABU-3 |
| 1/4 | 0.19 | 5/8 | 9/16 | 1.69 | 1.03 | 29/64 | 0.40 | ABU-4 |
| 5/16 | 0.25 | 11/16 | 5/8 | 1.81 | 1.12 | 33/64 | 0.44 | ABU-5 |
| 3/8 | 0.28 | 3/4 | 11/16 | 1.87 | 1.16 | 37/64 | 0.44 | ABU-6 |
| 1/2 | 0.41 | 15/16 | 7/8 | 2.00 | 1.25 | 49/64 | 0.50 | ABU-8 |
| 5/8 | 0.50 | 1 1/16 | 1 | 2.06 | 1.28 | 57/64 | 0.50 | ABU-10 |
| 3/4 | 0.63 | 1 3/16 | 1 1/8 | 2.31 | 1.47 | 1 1/64 | 0.66 | ABU-12 |
| 1 | 0.88 | 1 5/8 | 1 1/2 | 2.81 | 1.78 | 1 21/64 | 0.75 | ABU-16 |
