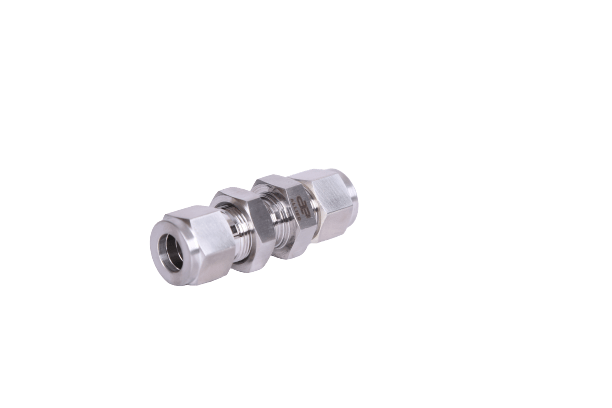

Bulkhead Reducing Union
For fractional Tubes connection
| TUBE OD | TUBE OD | DIMENSIONS IN INCH | Panel Hole | Panel Thickness | PART NO. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| T | Tx | E | F | G | Gx | L | Lx | Size | Max. | |
| 1/4 | 1/8 | 0.09 | 5/8 | 9/16 | 7/16 | 1.62 | 1.03 | 29/64 | 0.40 | ARBU-4-2 |
| 3/8 | 1/4 | 0.19 | 3/4 | 11/16 | 9/16 | 1.81 | 1.16 | 37/64 | 0.44 | ARBU-6-4 |
| 1/2 | 1/4 | 0.19 | 15/16 | 7/8 | 9/16 | 1.94 | 1.25 | 49/64 | 0.50 | ARBU-8-4 |
