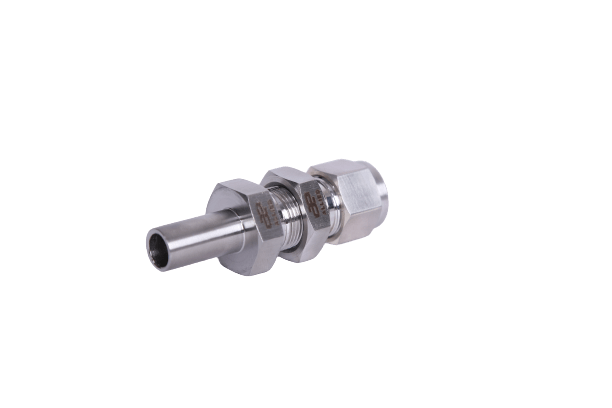

Bulkhead Reducer
For fractional Tube to fractional ports connection
| TUBE OD | DIMENSIONS IN INCH | Panel Hole | Panel Thickness | PART NO. | ||||
|---|---|---|---|---|---|---|---|---|
| T | E | F | G | L | Lx | Size | Max. | |
| 1/8 | 0.08 | 1/2 | 7/16 | 1.69 | 0.97 | 21/64 | 0.50 | ABR-2 |
| 1/4 | 0.19 | 5/8 | 9/16 | 1.91 | 1.03 | 29/64 | 0.40 | ABR-4 |
| 3/8 | 0.28 | 3/4 | 11/16 | 2.12 | 1.16 | 37/64 | 0.44 | ABR-6 |
| 1/2 | 0.39 | 15/16 | 7/8 | 2.47 | 1.25 | 49/64 | 0.50 | ABR-8 |
| 5/8 | 0.50 | 1 1/16 | 1 | 2.56 | 1.28 | 57/64 | 0.50 | ABR-10 |
| 1 | 0.80 | 1 5/8 | 11/2 | 3.47 | 1.78 | 1 21/64 | 0.75 | ABR-16 |
