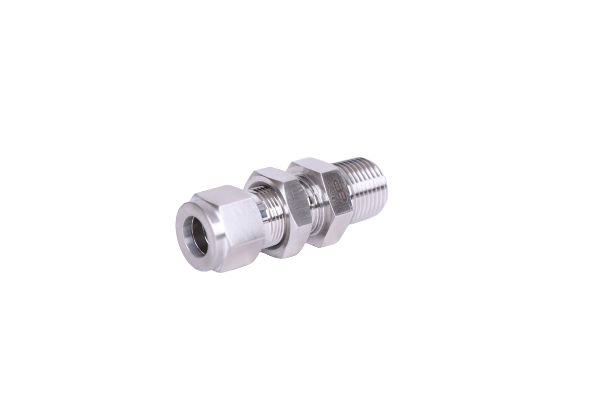

Bulkhead Male Connector (Tapered Thread)
For fractional Tube to Female NPT thread connection
| TUBE OD | NPT MALE THREAD | DIMENSIONS IN INCH | Panel Hole | Panel Thickness | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T | P | B | E | F | Fx | G | L | Lx | |||
| 1/8 | 1/8 | 0.38 | 0.09 | 1/2 | 1/2 | 7/16 | 1.57 | 0.97 | 21/64 | 0.5 | ABMC-2-2N |
| 3/16 | 1/8 | 0.38 | 0.12 | 9/16 | 9/16 | 7/16 | 1.63 | 1.00 | 25/64 | 0.5 | ABMC-3-2N |
| 1/4 | 1/8 | 0.38 | 0.19 | 5/8 | 5/8 | 9/16 | 1.66 | 1.03 | 29/64 | 0.4 | ABMC-4-2N |
| 1/4 | 1/4 | 0.56 | 0.19 | 5/8 | 5/8 | 9/16 | 1.84 | 1.03 | 29/64 | 0.4 | ABMC-4-4N |
| 1/4 | 3/8 | 0.56 | 0.19 | 11/16 | 5/8 | 9/16 | 1.87 | 1.02 | 29/64 | 0.4 | ABMC-4-6N |
| 1/4 | 1/2 | 0.75 | 0.19 | 7/8 | 5/8 | 9/16 | 2.08 | 1.02 | 29/64 | 0.4 | ABMC-4-8N |
| 5/16 | 1/8 | 0.38 | 0.19 | 11/16 | 11/16 | 5/8 | 1.78 | 1.12 | 33/64 | 0.44 | ABMC-5-2N |
| 5/16 | 1/4 | 0.56 | 0.25 | 11/16 | 11/16 | 5/8 | 1.97 | 1.12 | 33/64 | 0.44 | ABMC-5-4N |
| 3/8 | 1/8 | 0.38 | 0.19 | 3/4 | 3/4 | 11/16 | 1.79 | 1.15 | 37/64 | 0.44 | ABMC-6-2N |
| 3/8 | 1/4 | 0.56 | 0.28 | 3/4 | 3/4 | 11/16 | 1.97 | 1.16 | 37/64 | 0.44 | ABMC-6-4N |
| 3/8 | 3/8 | 0.56 | 0.28 | 3/4 | 3/4 | 11/16 | 1.97 | 1.16 | 37/64 | 0.44 | ABMC-6-6N |
| 3/8 | 1/2 | 0.75 | 0.28 | 7/8 | 3/4 | 11/16 | 2.22 | 1.16 | 37/64 | 0.44 | ABMC-6-8N |
| 1/2 | 1/4 | 0.56 | 0.28 | 15/16 | 15/16 | 7/8 | 2.09 | 1.25 | 49/64 | 0.5 | ABMC-8-4N |
| 1/2 | 3/8 | 0.56 | 0.38 | 15/16 | 15/16 | 7/8 | 2.09 | 1.25 | 49/64 | 0.5 | ABMC-8-6N |
| 1/2 | 1/2 | 0.75 | 0.41 | 15/16 | 15/16 | 7/8 | 2.31 | 1.25 | 49/64 | 0.5 | ABMC-8-8N |
| 1/2 | 3/4 | 0.75 | 0.41 | 1 1/8 | 15/16 | 7/8 | 2.32 | 1.25 | 49/64 | 0.5 | ABMC-8-12N |
| 5/8 | 3/8 | 0.56 | 0.38 | 1 1/16 | 1 1/16 | 1 | 2.23 | 1.28 | 57/64 | 0.5 | ABMC-10-6N |
| 5/8 | 1/2 | 0.75 | 0.47 | 1 1/16 | 1 1/16 | 1 | 2.41 | 1.28 | 57/64 | 0.5 | ABMC-10-8N |
| 3/4 | 1/2 | 0.75 | 0.47 | 1 3/16 | 1 3/16 | 1 1/8 | 2.60 | 1.47 | 11/64 | 0.66 | ABMC-12-8N |
| 3/4 | 3/4 | 0.75 | 0.62 | 1 3/16 | 1 3/16 | 1 1/8 | 2.60 | 1.47 | 11/64 | 0.66 | ABMC-12-12N |
| 7/8 | 3/4 | 0.75 | 0.62 | 1 3/8 | 1 3/8 | 1 1/4 | 2.91 | 1.69 | 19/64 | 0.66 | ABMC-14-12N |
| 1 | 3/4 | 0.75 | 0.62 | 1 5/8 | 1 5/8 | 1 1/2 | 3.00 | 1.78 | 1 21/64 | 0.75 | ABMC-16-12N |
| 1 | 1/2 | 0.94 | 0.88 | 1 5/8 | 1 5/8 | 1 1/2 | 3.19 | 1.78 | 121/64 | 0.75 | ABMC-16-16N |
