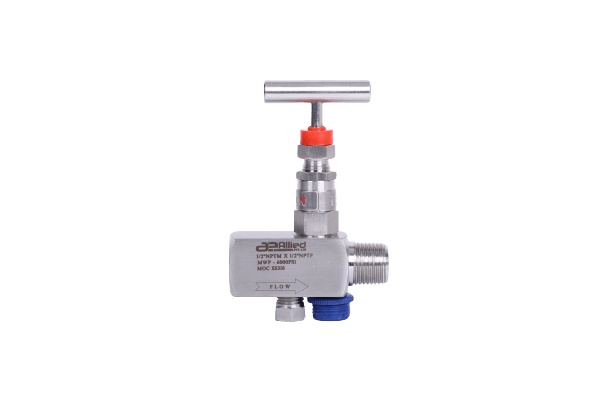

Model No. ANV MF-D
Needle Valve with down stream vent for usage with Static Pressure Gauge and instrument installation for isolation and venting.
Description
Test Pressure
@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar(g)
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar(g)
Gland Packing
PTFE : Standard
Graphoil : Temperatures above 200°C
Graphoil : Temperatures above 200°C
Material
A105, A 479 304, A 479 316,
A182 GR F 316, Monel, Hastelloy, Duplex
A182 GR F 316, Monel, Hastelloy, Duplex
Finish
CS zinc plated. SS Natural
Connections
| (INLET x OUTLET) | PART NO. |
|---|---|
1/2” MNPT x 1/2” MNPT | ANV-8N-MM-D |
1/2”MNPT x 1/2”FNPT | ANV-8N-MF-D |
1/2”FNPT x 1/2”FNPT | ANV-8N-FF-D |
3/4”MNPT x 1/2”FNPT | ANV-12N-8N-MF-D |
