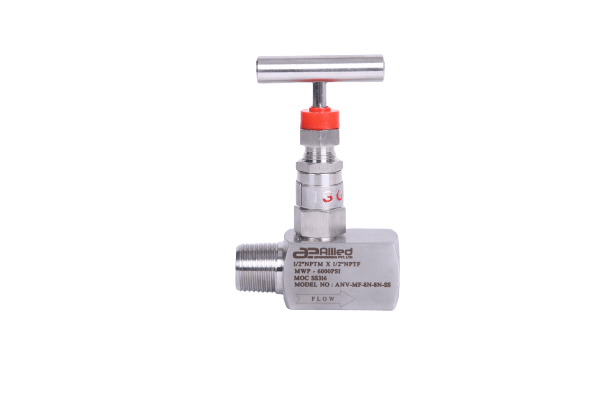

Model No. ANV M-F

Designed for use in applications for throttling purpose and straight shut off of liquids, gas or vapour service. These needle valves are available with a variety of end connections and stem packing.

Description

Test Pressure
@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar(g)
Gland Packing
PTFE : Standard
Graphoil : Temperatures above 200°C
Material
A105, A 479 304, A 479 316,
A182 GR F 316, Monel, Hastelloy, Duplex

Finish

CS zinc plated. SS Natural

Connections
INLET x OUTLET A B C PART NO.
1/4”MBSP x 1/4” FBSP
55
25
90
ANV-4R-MF
1/2”MBSP x 1/2”FBSP
65
28
92
ANV-8R-MF
3/4”MBSP x 1/2”FBSP
65
36
110
ANV-12R-8R-MF
3/4”MBSP x 3/4”FBSP
65
36
95
ANV-12R-MF
1”MBSP x 1”FBSP
80
42
100
ANV-16R-MF
INLET x OUTLET A B C PART NO.
1/4”MNPT x 1/4”FNPT
55
25
90
ANV-4N-MF
1/2”MNPT x 1/4”FNPT
63
28
92
ANV-8N-4N-MF
1/2”MNPT x 1/2”FNPT
65
28
92
ANV-8N-MF
3/4”MNPT x 1/2”FNPT
65
36
110
ANV-12N-8N-MF
3/4”MNPT x 3/4”FNPT
65
36
95
ANV-12N-MF
1”MNPT x 1”FNPT
80
42
100
ANV-16N-MF
