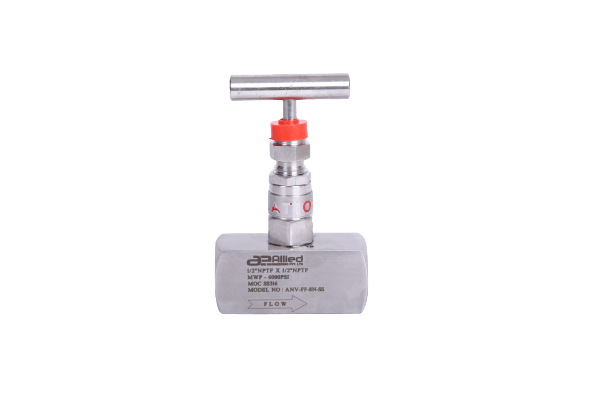

Model No. ANV-FF

Designed for use in purpose applications for throttling and straight shut off of liquids, gas or vapour service. These needle valves are available with a variety of end connections and stem packing.

Description

Test Pressure
@ 25°C Room Temperature
Hydrostatic : Body – 415 bar(g)
Seat – 415 bar(g)
Pneumatic : Seat – 7 bar(g)
Gland Packing
PTFE : Standard
Graphoil : Temperatures above 200°C
Material
A105, A 479 304, A 479 316,
A182 GR F 316, Monel, Hastelloy, Duplex

Finish

CS zinc plated. SS Natural

Connections

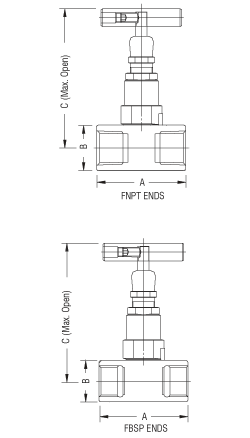

SIZE A B C PART NO.
1/4” FNPT
56
25
89
ANV-4N-FF
3/8” FNPT
56
25
89
ANV-6N-FF
½” FNPT
65
28
90
ANV-8N-FF
3/4” FNPT
65
36
110
ANV-12N-FF
1” FNPT
80
42
113
ANV-6N-FF
1/4”BSP
56
25
90
ANV-4R-FF
3/8”BSP
56
25
90
ANV-6R-FF
1/2”BSP
65
28
92
ANV-8R-FF
3/4”BSP
65
36
92
ANV-12R-FF
1”BSP
80
42
100
ANV-16R-FF
