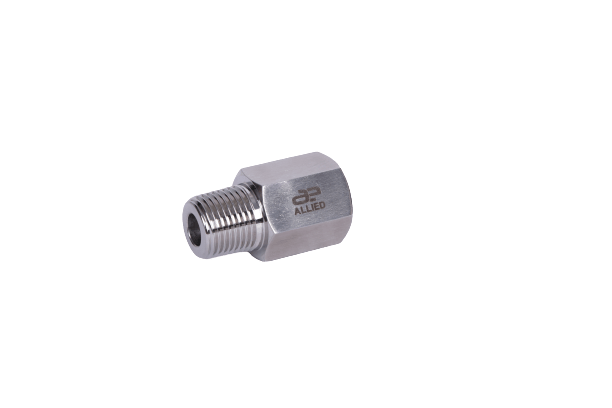

Adapter - AA
Female to Male NPT Threads
| PIPE SIZE | DIMENSIONS | PRESSURE RATINGS | PART NO. | ||||||
|---|---|---|---|---|---|---|---|---|---|
| P1 -FEMALE NPT | P2 -MALE NPT | E | L | A/F | |||||
| INCH | MM | INCH | MM | INCH | PSIG | BAR | |||
| 1/8 | 1/8 | 0.19 | 4.8 | 1.10 | 27.9 | 9/16 | 6400 | 435 | AA-2N |
| 1/4 | 1/4 | 0.28 | 7.1 | 1.40 | 35.6 | 3/4 | 6600 | 450 | AA-4N |
| 3/8 | 3/8 | 0.38 | 9.6 | 1.51 | 38.4 | 7/8 | 5300 | 360 | AA-6N |
| 1/2 | 1/2 | 0.47 | 11.9 | 1.94 | 49.3 | 1 1/16 | 5200 | 354 | AA-8N |
| 3/4 | 3/4 | 0.62 | 15.7 | 2.02 | 51.3 | 15/16 | 4300 | 292 | AA-12N |
| 1 | 1 | 0.88 | 22.1 | 2.28 | 57.9 | 1 5/8 | 4500 | 306 | AA-16N |
