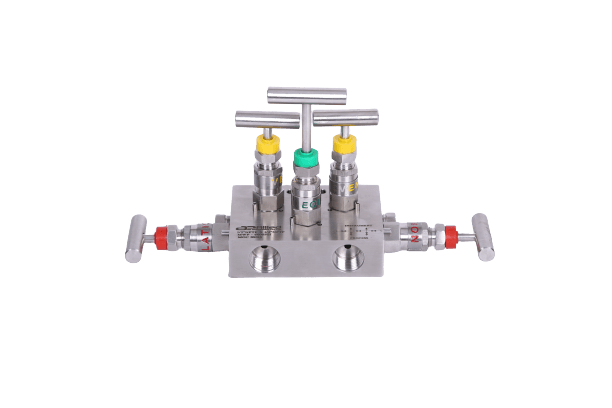

Five Valve Manifold G5 VMPP-1 incorporate two process isolation valves, one equalizer valve and two drain/vent valves with separate connections in a compact manifold block.

The Model G5 VMPP-1 is designed for remote mounting away from the differential pressure instrument and joined by tube or pipe impulse lines. They have threaded connections of which the most popular are detailed below but also available to suit other sizes and standards.

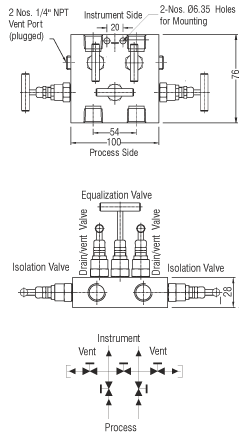

Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection. Centre distance found in majority of instruments.

The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.

Please consult us for these dimensions.
