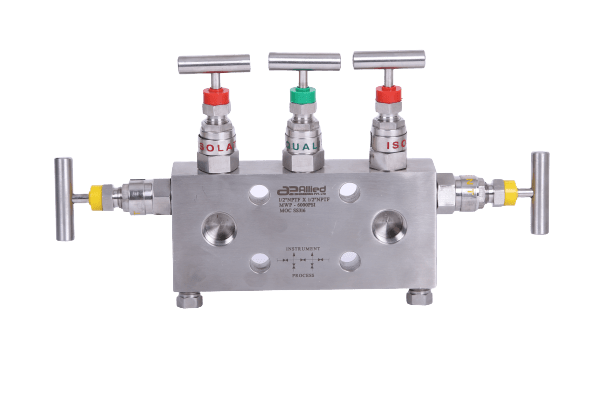

Five Valve Manifold Model G5 VMPF 2 is designed for direct mounting on differential pressure instruments. The manifold incorporates two process isolation valves, one equalizer valve and two drain/vent valves with separate connections. The process connection is through threaded connections for tube or pipe assembly. The valves are suitably angled to prevent fouling with the instrument.

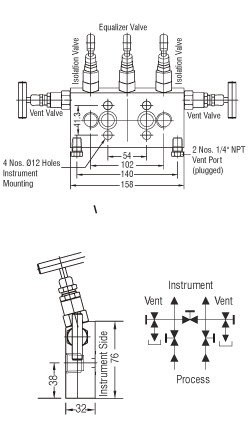

Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection centres but also available for other centres on request.
