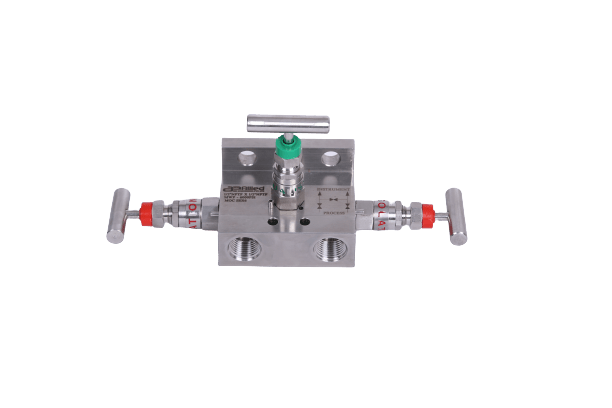

Designed for direct mounting on to standard differential pressure transmitters. This manifold block incorporates three valves, two main process isolation valves and one equalising valve.

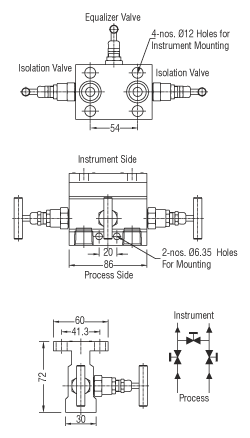

Dimensions shown are for the standard 54 mm or 2 1/8 inch instrument connection Centre distance found in majority of instruments.
The manifold is also available for instruments with other centre distances for instrument connections (as 55 mm, 56 mm and 57 mm) but dimensions shown will vary.

Please consult us for these dimensions.
